The Euroslider V2 lets you make use of both the depth and height of the cargo area - without making the Euroboxes more difficult to reach.

Instead of reaching in for a box positioned far at the back, moving other boxes, or unloading equipment to access it, you simply pull the entire Eurobox all the way out toward you.

With full pull-out, a one-handed handle, low installation height, low weight, and high load capacity, you get a storage solution that makes more of the cargo area genuinely usable.

Full access to the entire Eurobox

A deep cargo area provides plenty of space, but that space is of little value if equipment at the back is difficult to access.

The Euroslider V2 pulls completely out of the cargo area, giving you a clear overview and easy access to the entire box - even when it is positioned far inside or forms part of a multi-level setup.

Easy one-handed operation

The Euroslider V2 has a practical one-handed handle that makes it easy to pull out and push in the slide-out with one hand.

This is especially practical when you already have something in your other hand and want quick access to the equipment.

Sizes and load capacity

The Euroslider V2 is available in the following sizes:

• 30 × 80 cm

• 30 × 120 cm

• 40 × 60 cm

• 40 × 90 cm

• 40 × 120 cm

• 60 × 80 cm

• 60 × 120 cm

Maximum load is determined by the length of the telescopic rails:

• 60 cm – max. 100 kg

• 80 cm – max. 80 kg

• 90 cm – the load limit must be confirmed for the relevant variant/revision before use.

• 120 cm – max. 50 kg

The load applies to evenly distributed weight.

Low weight

The Euroslider V2 is mainly made of aluminum and keeps its weight low even when brackets, screws, and other mounting parts are included.

Measured total weights without Eurobox:

• 40 × 60 cm – 4.8 kg

• 60 × 80 cm – 6.4 kg

• 40 × 120 cm – 8.8 kg

The combination of low weight and high load capacity is especially advantageous in motorhomes and other vehicles where both payload and space are important.

Low installation height

The included floor brackets can be adjusted so that the distance from the floor to the underside of the Euroslider is 1.5–8 cm. This makes it easy to adapt the pull-out to thresholds, floors, and other fittings.

Check the total installation height with the selected Eurobox and the actual bracket position for the relevant variant before installation. Contact us if space is limited.

This makes the Euroslider V2 well suited even where height is limited and every centimeter counts.

Build on multiple levels

If you want several pull-outs above one another, Euroslider V2 can be combined with Stacking kit for Euroslider.

This allows the height of the load compartment to be used with several separate pull-outs, while each Euro box can still be pulled out individually.

There is no fixed limit to the number of levels. The setup is adapted to the available height, box sizes and how you want to use the space.

Flexible mounting

Euroslider V2 can be mounted in several ways:

• with floor brackets on both sides

• directly against the side wall

• with one side against the wall and the other against the floor

This makes it possible to adapt the solution to different load compartments and interiors.

The surface and mounting points must always be suitable for the load the system will be subjected to.

Actual space requirements

Measure the total width, depth and height of the relevant configuration with brackets, handles and the selected Euro box. The configuration measurement alone is not the total measurement for the completed installation. Check the threshold, hatch and space for free movement throughout the entire pull-out. Contact us before ordering if the fit depends on a few millimetres.

Combine different depths

You are not locked into the same depth for all Eurosliders in a larger setup.

Depths of 60, 80, 90 and 120 cm can be combined if the shape of the load compartment or interior makes this appropriate.

With some combinations, it may be necessary to drill additional mounting holes in the telescopic rails.

This provides great flexibility for making use of load compartments where the available depth varies.

Build according to the space and your needs

Euroslider V2 can be used as a single pull-out or expanded into a larger system with different widths, depths and levels.

You can therefore start with what you need today and expand later if your needs change.

The point is not just to fit more boxes - but to make more of the space easy to use and the equipment easier to access.

Included

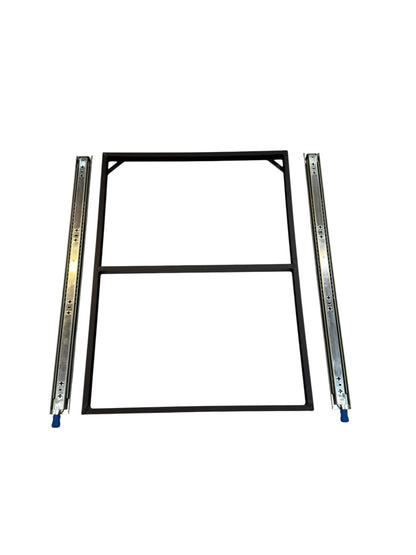

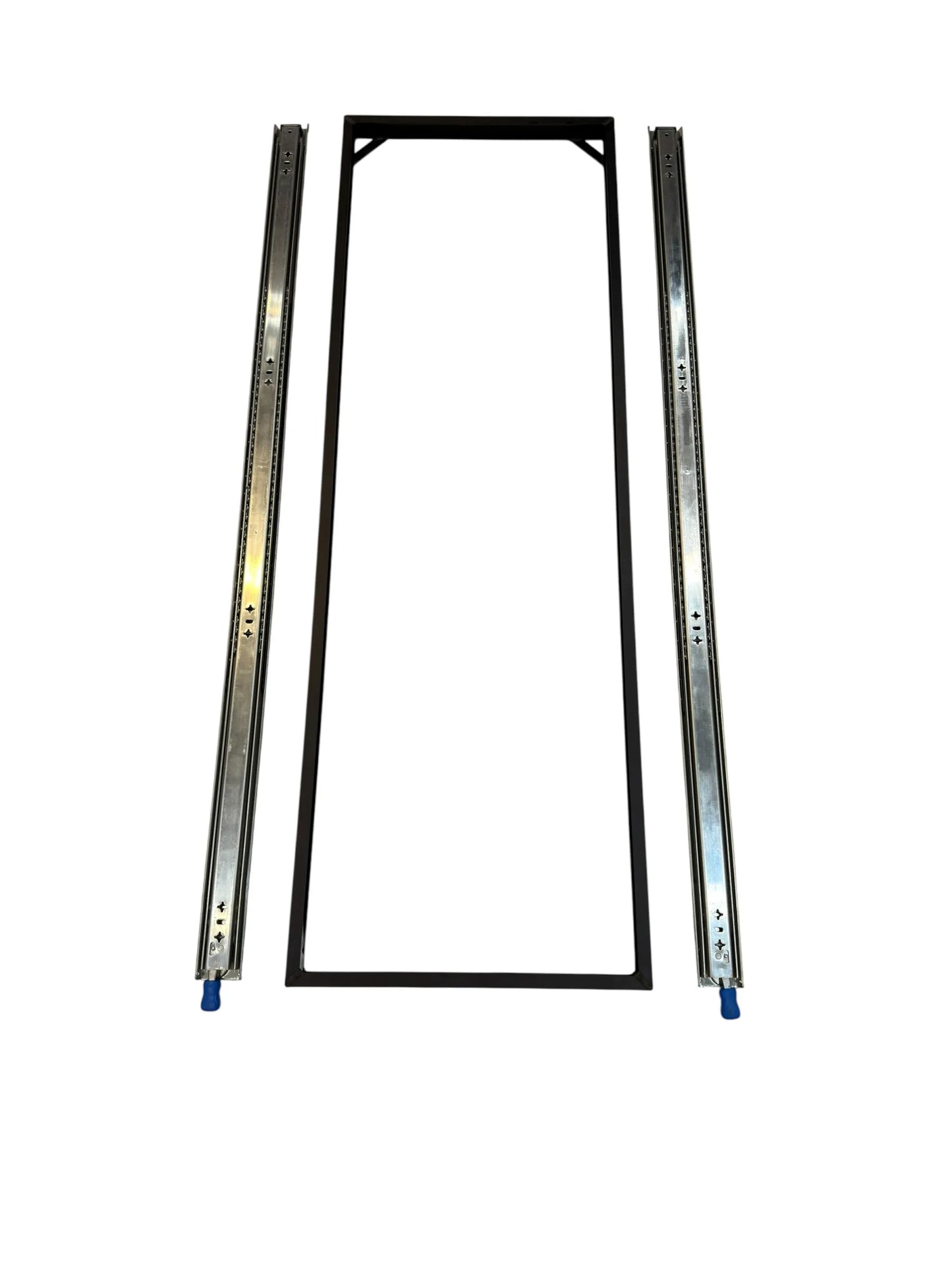

• 1 Euroslider V2 in the selected size

• Full-extension telescopic rails

• Height-adjustable floor brackets

• Necessary screws and mounting components

Euro boxes are not included.

Euroboxes and Tier kits for Euroslider are sold separately.

See tips and inspiration.
